AI-Powered Expense Tracker with OCR

Cloud-native expense management application built on AWS using managed AI services, Infrastructure as Code, and containerized deployment.

Badges

Table of Contents

• Overview
• Problem Statement
• Architecture
• Tech Stack
• Core Workflows
• Infrastructure as Code
• Containerization & Deployment
• Security
• Scalability
• Testing
• Project Structure
• Setup & Deployment
• Future Enhancements
• Author

Overview

The AI-Powered Expense Tracker with OCR is a production-ready cloud-native web application built on Amazon Web Services (AWS).

Users can:

• Authenticate securely
• Upload receipt images
• Automatically extract financial data using AWS Textract
• Visualize expenses through an interactive dashboard
• Receive automated monthly summaries via email

The project demonstrates real-world implementation of:

• Infrastructure as Code (IaC)
• Serverless storage
• Managed identity
• AI-as-a-Service
• Container orchestration
• Cloud-native architecture

Problem Statement

Manual expense tracking requires repetitive data entry and often leads to errors.

This project automates receipt digitization using AWS Textract AnalyzeExpense API, reducing manual effort while maintaining scalability and security.

Architecture

The system is designed using a layered cloud-native architecture.

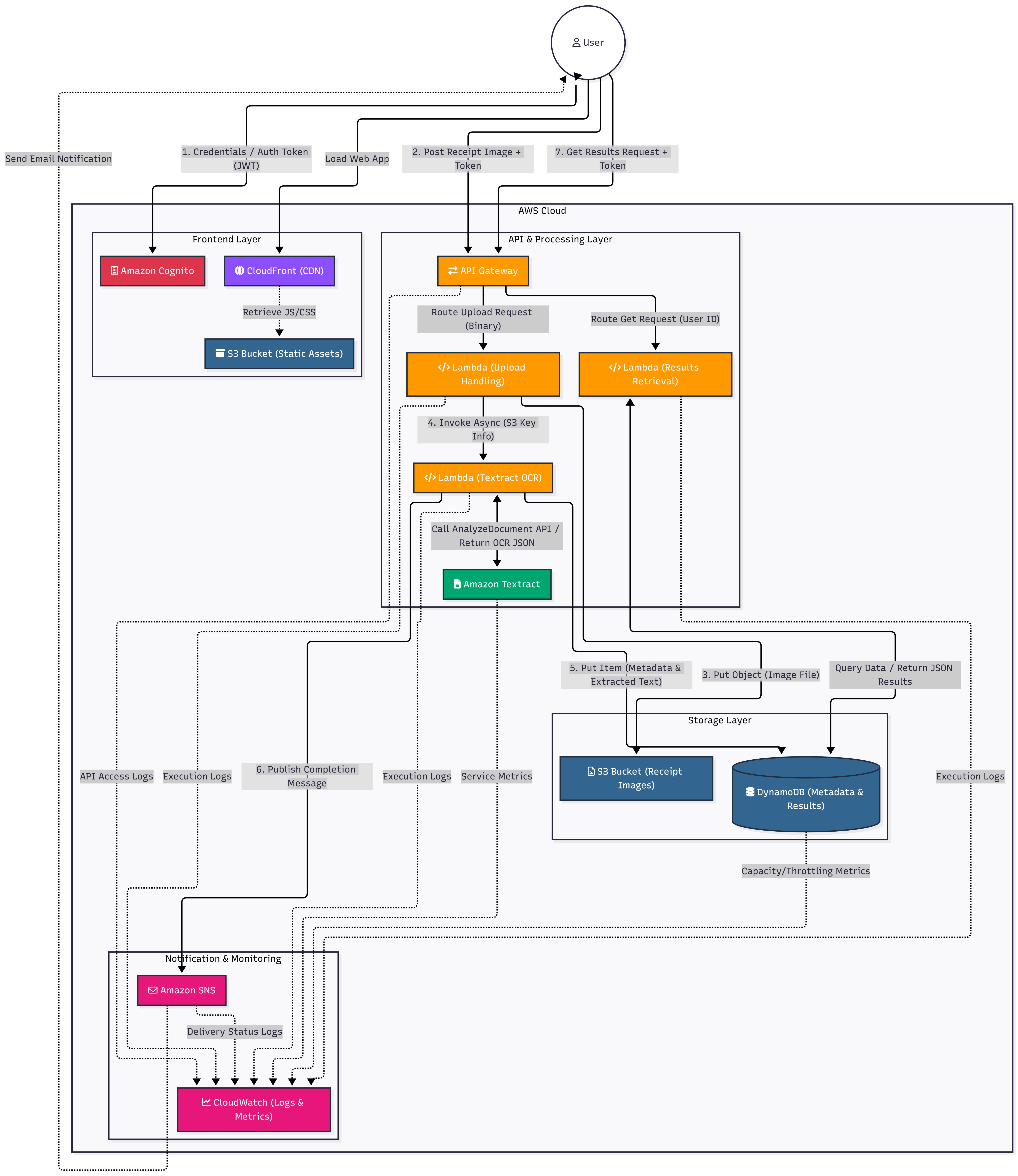

1️⃣ Cloud Architecture (Component View)

• Client (Next.js frontend)
• EC2 (Dockerized backend & frontend)
• Cognito (Authentication)
• S3 (Receipt Storage)
• Textract (OCR)
• DynamoDB (Database)
• SNS (Notifications)
• VPC + Security Groups (Networking)

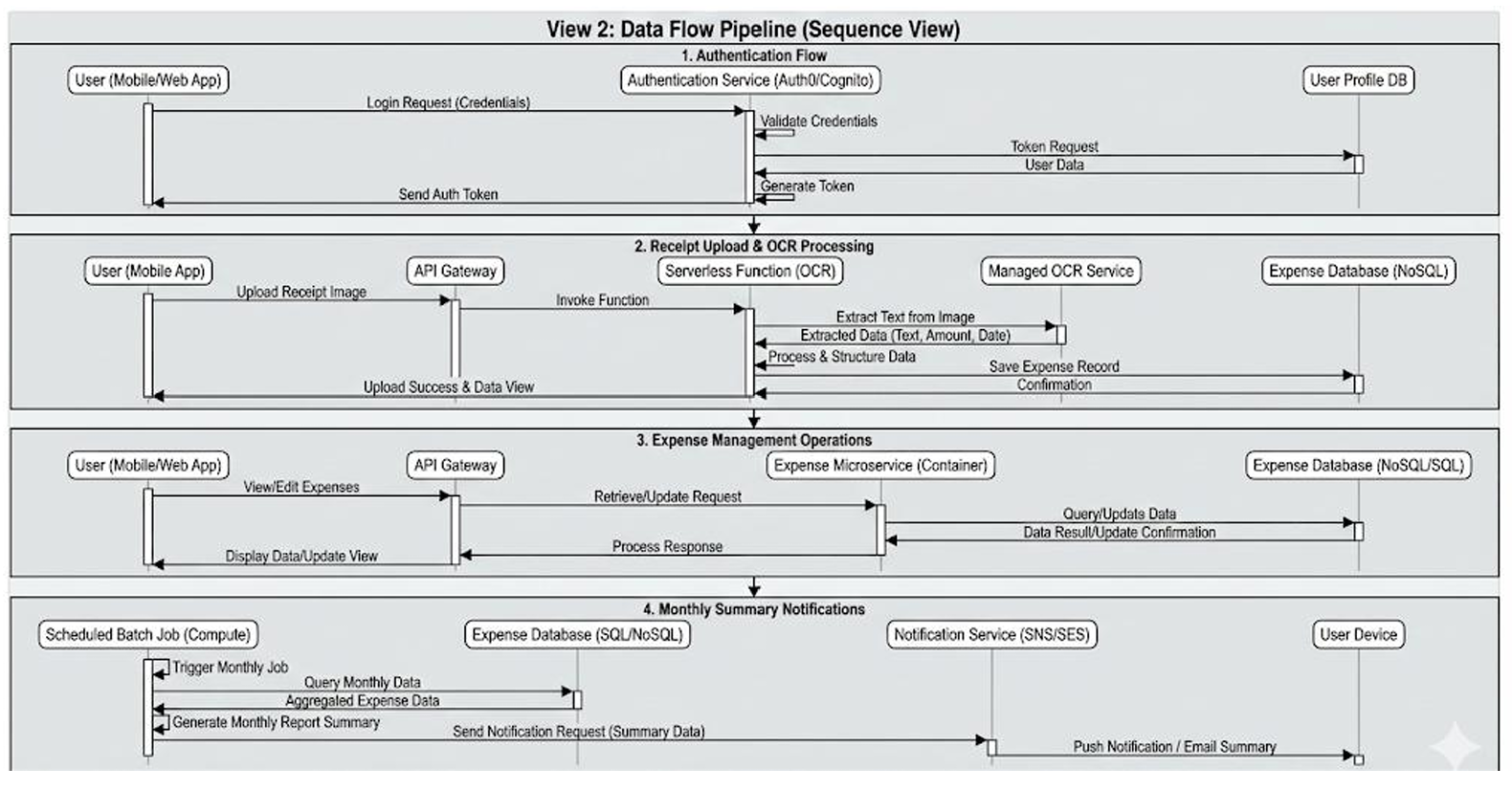

2️⃣ Data Flow Pipeline (Sequence View)

Workflows include:

• Authentication
• Receipt Upload + OCR Processing
• Expense Management
• Monthly Summary Notifications

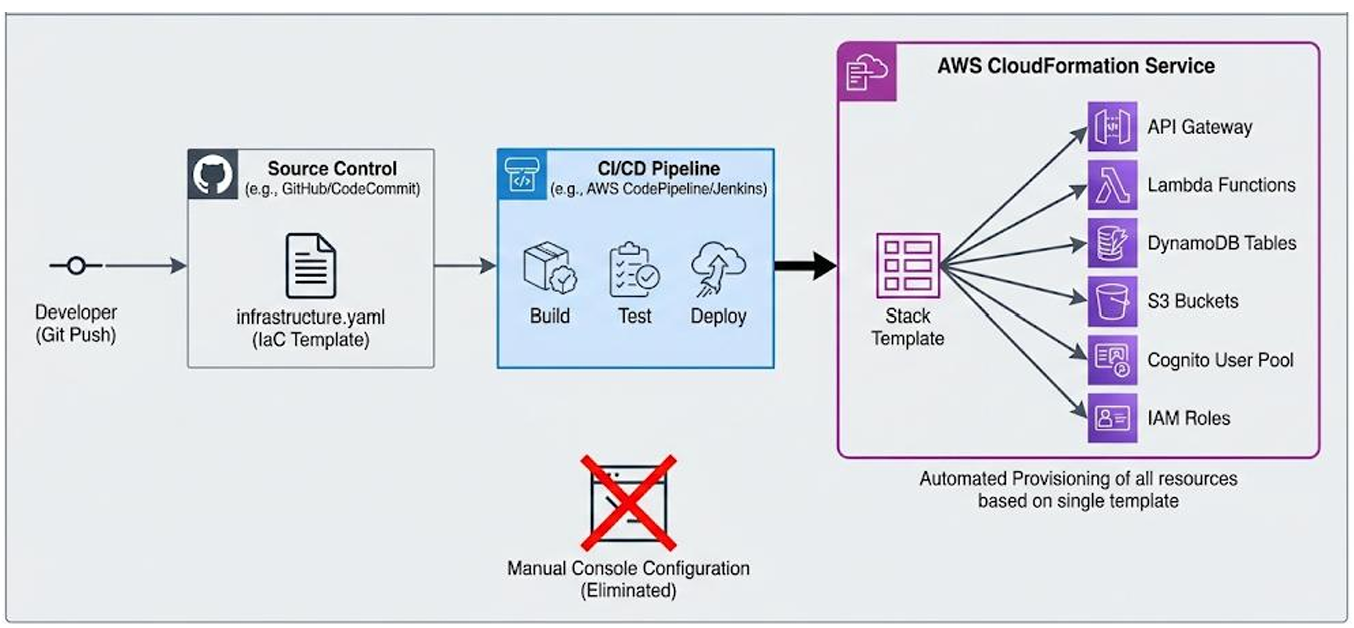

3️⃣ Infrastructure Deployment (IaC View)

All AWS resources are provisioned through:

infrastructure.yaml

Tech Stack

Frontend

• Next.js 16
• TypeScript
• Tailwind CSS

Backend

• Node.js v22
• Express.js

Containerization

• Docker
• Docker Compose

AWS Services

• EC2 (t3.micro)
• Cognito
• S3 (Presigned URLs)
• Textract (AnalyzeExpense API)
• DynamoDB (Pay-per-request)
• SNS
• CloudFormation
• VPC & Security Groups

Core Workflows

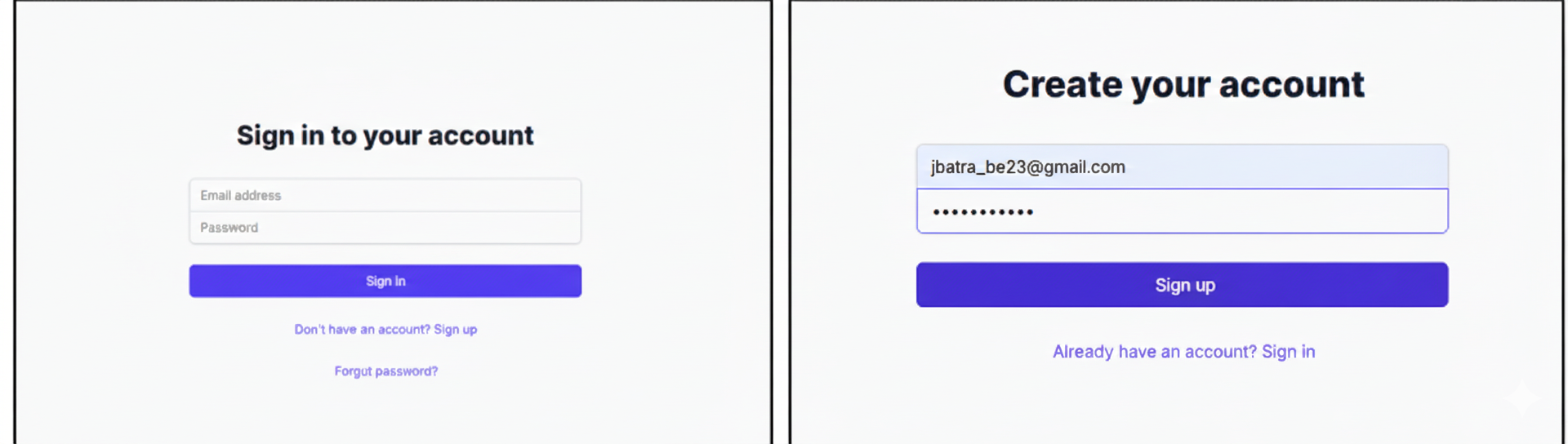

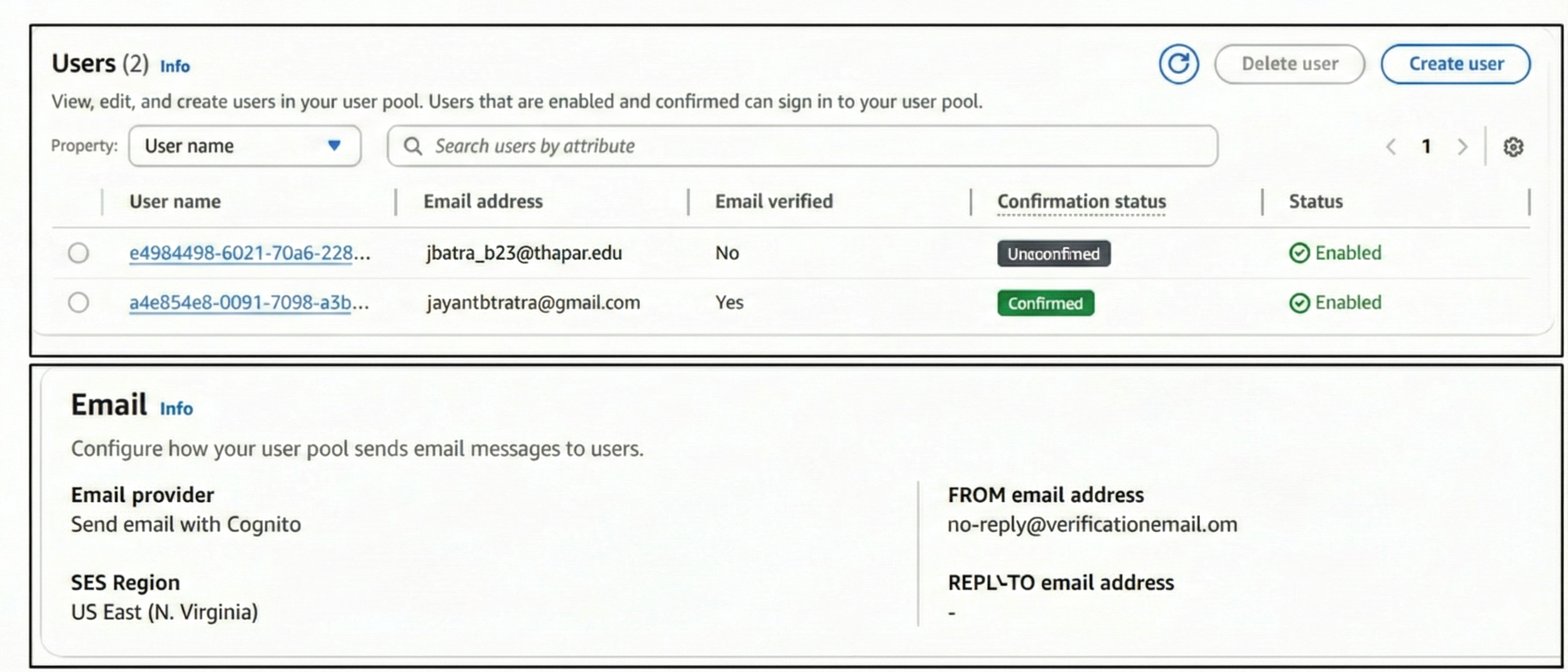

Authentication Flow

• User signup with email verification (OTP)
• Secure Remote Password (SRP)
• JWT token issued upon login
• JWT used for protected API calls

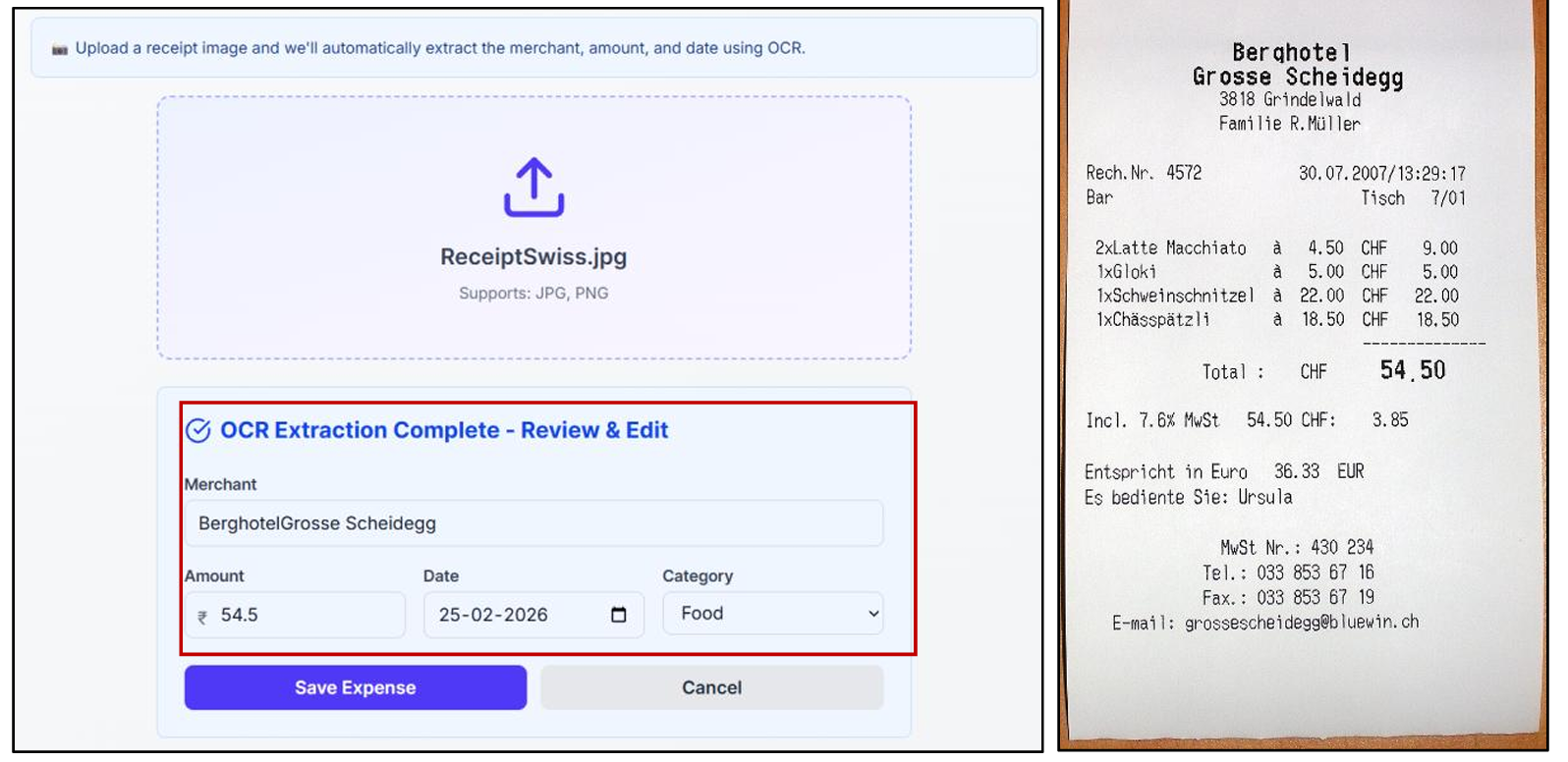

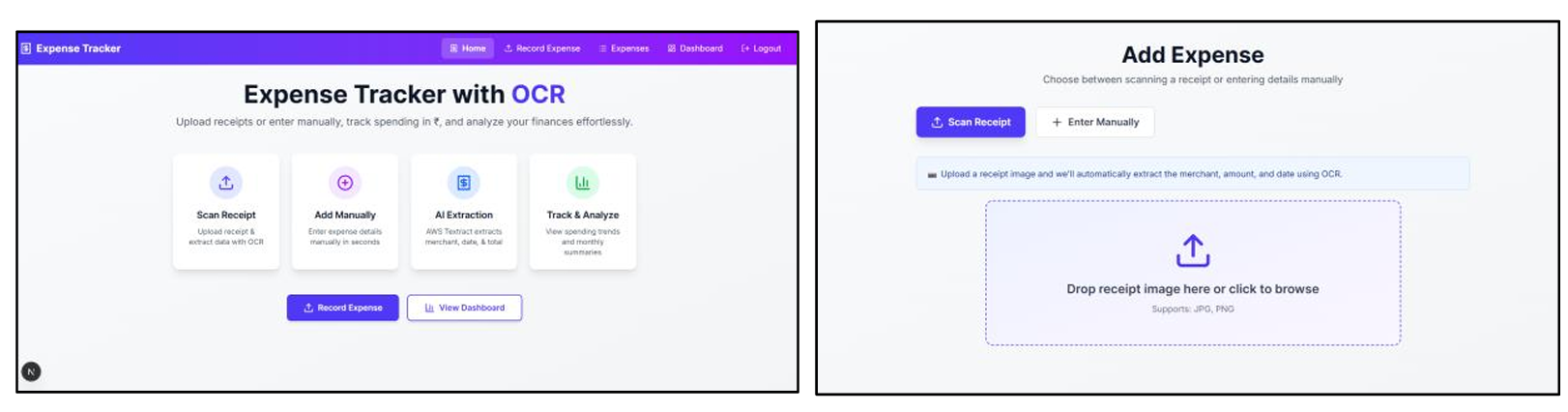

Receipt Upload & OCR Pipeline

1. User selects receipt

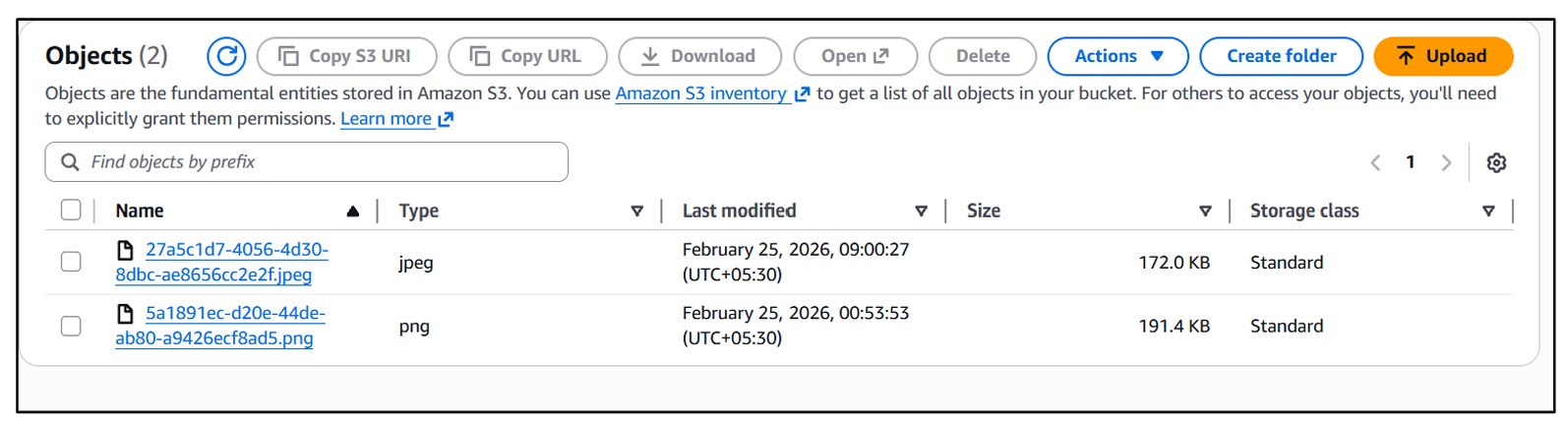

2. Backend generates presigned S3 URL

3. Frontend uploads directly to S3

4. Backend calls Textract AnalyzeExpense

5. Extracted fields returned:

   • Merchant Name
   • Total Amount
   • Date

6. User confirms data

7. Expense saved to DynamoDB

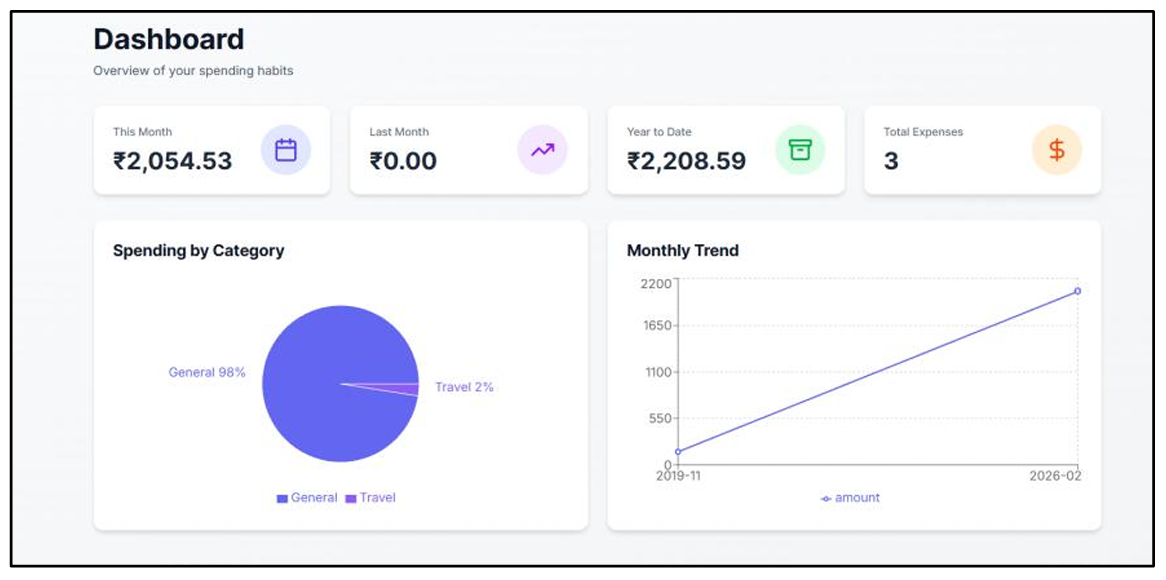

Expense Dashboard

• JWT-authenticated requests

• Partitioned DynamoDB queries using userId

• Displays:

  • Category pie chart
  • Monthly trend line chart
  • Expense table
  • Summary statistics

Monthly Email Notifications

• Scheduled aggregation of expenses
• Formatted HTML summary
• Published to SNS topic
• Delivered via email

Infrastructure as Code

All AWS resources are defined in a single declarative file:

infrastructure.yaml

Resources created:

• VPC
• Public Subnet
• Internet Gateway
• Route Tables
• Security Groups
• EC2 Instance
• IAM Role & Instance Profile
• Cognito User Pool & Client
• S3 Bucket
• DynamoDB Table
• SNS Topic

Benefits

• Reproducible deployments
• Version-controlled infrastructure
• Automated rollback
• No manual console configuration

Containerization & Deployment

Two containers:

Managed via docker-compose.

Benefits:

• Environment consistency
• Dependency isolation
• Simplified deployment
• Production-ready setup

Security

Authentication

• JWT-based stateless authentication
• SRP protocol
• Email verification
• Token expiration

Data Protection

• Private S3 bucket
• 15-minute presigned URL expiration
• DynamoDB encryption at rest
• HTTPS enforced

Network Isolation

• Custom VPC
• Restricted security groups
• Least-privilege IAM roles

Scalability

Current Limitation

• Single EC2 instance (Single Point of Failure)

Future Improvements

• Application Load Balancer
• Auto Scaling Group
• CloudFront CDN
• ElastiCache (Redis)
• Lambda-based backend
• DynamoDB GSIs

Testing

Functional Testing

• Signup & OTP verification
• JWT validation
• OCR extraction accuracy
• Expense persistence

Security Testing

• Unauthorized API rejection
• Expired token handling
• Cross-user isolation
• Presigned URL expiration validation

Project Structure

.
├── backend/
├── frontend/
├── infrastructure.yaml
├── docker-compose.yml
└── README.md

Setup & Deployment

1. Clone Repository

git clone <repository-url>
cd expense-tracker

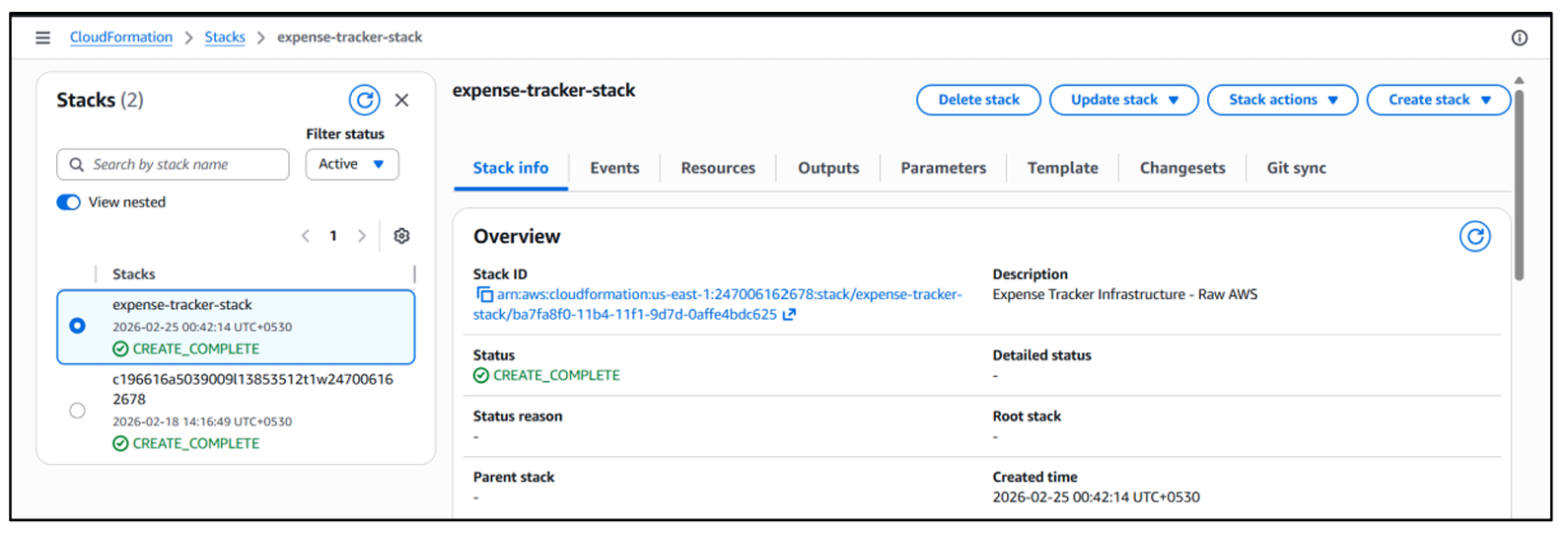

2. Deploy Infrastructure

aws cloudformation deploy \
  --template-file infrastructure.yaml \
  --stack-name expense-tracker-stack

3. Run Application

docker-compose up --build

Future Enhancements

• Multi-currency support
• Budget alerts
• Expense sharing between users
• Analytics export (CSV/PDF)
• Serverless backend migration
